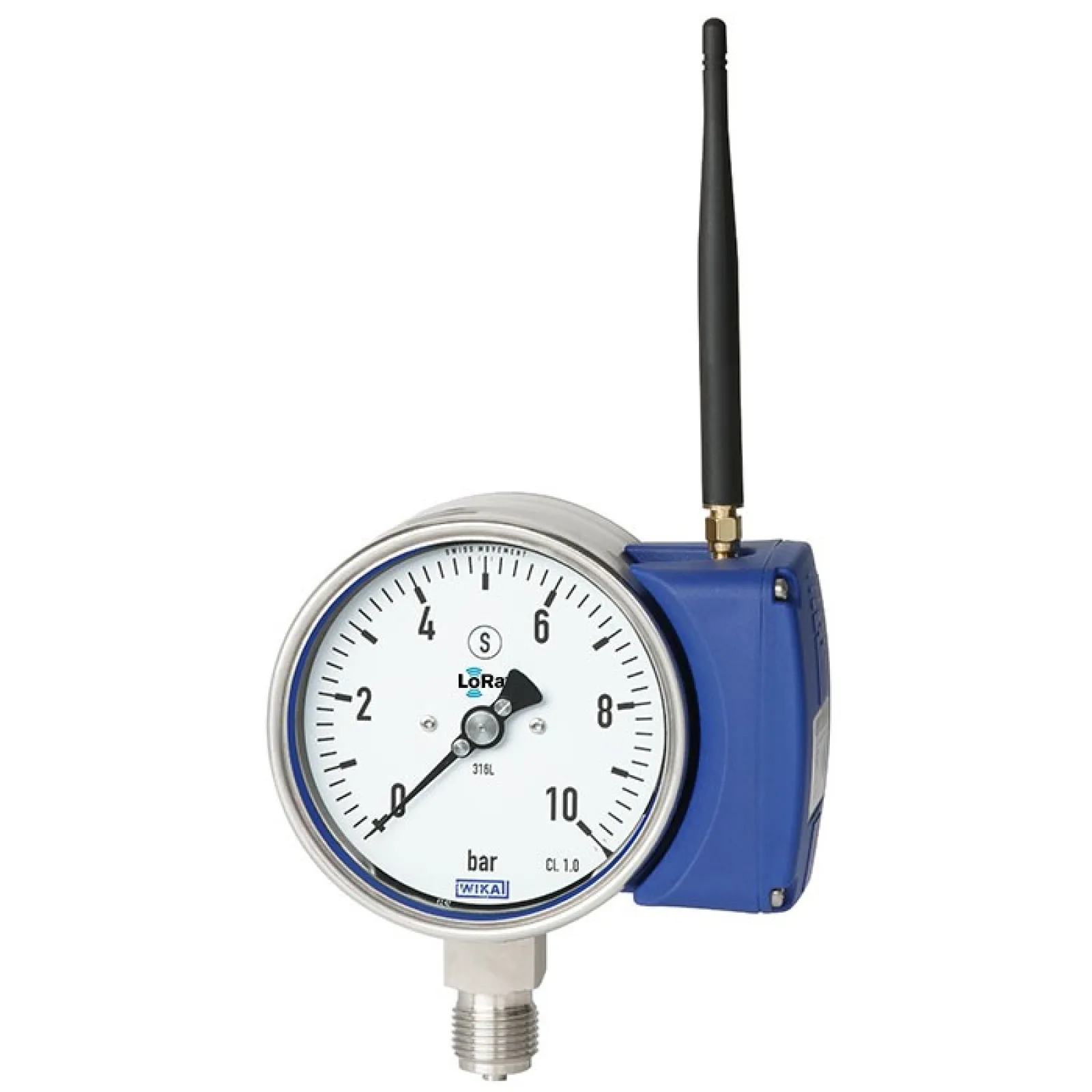

The IIoT-capable model PGW2x.100 pressure gauge finds its use wherever the process pressure has to be indicated on-site and, at the same time, centralised, web-based remote monitoring is required.
The model PGW2x.100 is based on a fully welded and robust Bourdon tube measuring system. It therefore combines the mechanical measuring system with electronic signal processing.
Battery-operated wireless transmission via LoRaWAN^® (“Long Range Wide Area Network”) is based on LPWAN technology (“Low Power Wide Area Network”) to enable high transmission ranges and long battery life.

Special features
■ IIoT-capable measuring instrument with mechanical on-site indication
■ Battery-operated LoRaWAN® wireless transmission based on LPWAN technology
■ High transmission range up to 10 km [6 mi] with long battery life (up to 5 years)
■ Stainless steel version, model PGW23.100 or Monel version, model PGW26.100
■ Measuring ranges from 0 … 0.6 to 0 ... 1,600 bar [0 ... 10 to 0 ... 20,000 psi] as well as vacuum and +/- measuring ranges
